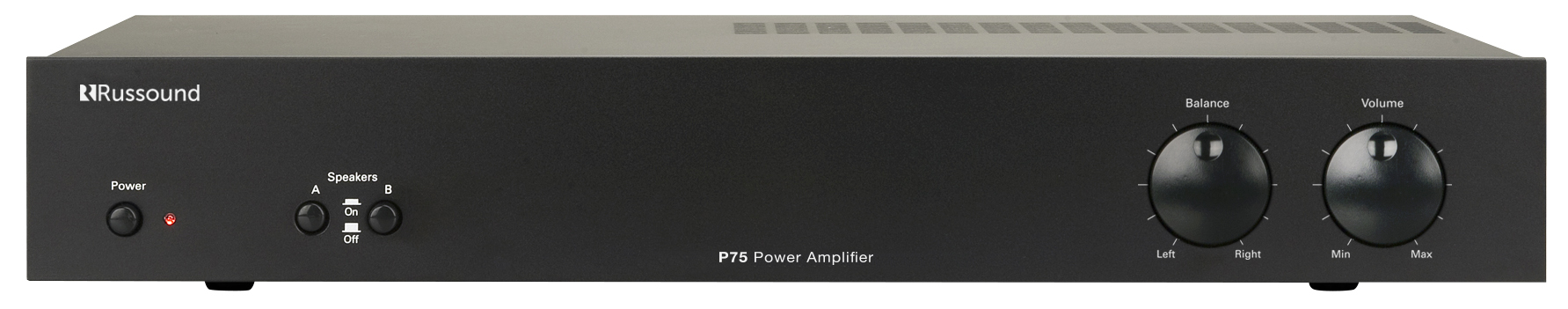

Russound® Two-Channel Dual Source Amplifier

Model #: P75

At a Glance

The P75 is a 2-channel dual source power amplifier with autosource switching. It features two audio line inputs with a loop out to another zone, receiver, or device from Line 2 source. This amplifier can be used for power upgrades in specific zones, for speaker selector or volume control systems.

WarningProposition 65 Warning for California Residents
Russound® Two-Channel Dual Source Amplifier

General Specs

Channels2
Analog Audio(RCA) Input2
ColorBlack

General

Shipping Dimensions10.5" (W) x 4.5" (H) x 20.0" (D), (26.7 x 11.4 x 50.8 cm)
Shipping Weight11.5 lbs (5.2 kg)
Crosstalk> 70dB @ 1 kHz
Frequency Response10Hz to 30kHz +0.0dB/- 3.0dB @ 8 ohms, 1 W
Input Sensitivity900mV for 50W at 8 ohms
Power Output60W per channel at 8 ohms
Power Requirement(s)120VAC 60Hz 4.2A
Signal to Noise Ratio100dB A-weighted

Russound® Two-Channel Dual Source Amplifier

Model #: P75
186605
Model #: P75
Russound
$99,999.00

Call for Best Price

At a Glance

The P75 is a 2-channel dual source power amplifier with autosource switching. It features two audio line inputs with a loop out to another zone, receiver, or device from Line 2 source. This amplifier can be used for power upgrades in specific zones, for speaker selector or volume control systems.

Get to know this product.

The P75 is a Class A/B amplifier rated at 75 watts per channel into 4 ohms, and 60 watts into 8 ohms. With the Stereo/Bridge Mono switch in Bridge Mono position, both amplifier channels are combined for a higher powered mono output. In Bridge mode the P75 is rated at 160 watts of power into a single 8 ohm load.

Not available to countries requiring CE certification. 110v only.

Built for multi-speaker applications with volume controls

Automatic switching between two sources with signal sensing

Front panel volume and balance controls

Channels are bridgeable to create one channel with 160 watts of power

Specifications

General Specs

Channels2
Analog Audio(RCA) Input2
ColorBlack

General

Shipping Dimensions10.5" (W) x 4.5" (H) x 20.0" (D), (26.7 x 11.4 x 50.8 cm)
Shipping Weight11.5 lbs (5.2 kg)
Crosstalk> 70dB @ 1 kHz
Frequency Response10Hz to 30kHz +0.0dB/- 3.0dB @ 8 ohms, 1 W
Input Sensitivity900mV for 50W at 8 ohms
Power Output60W per channel at 8 ohms
Power Requirement(s)120VAC 60Hz 4.2A
Signal to Noise Ratio100dB A-weighted
