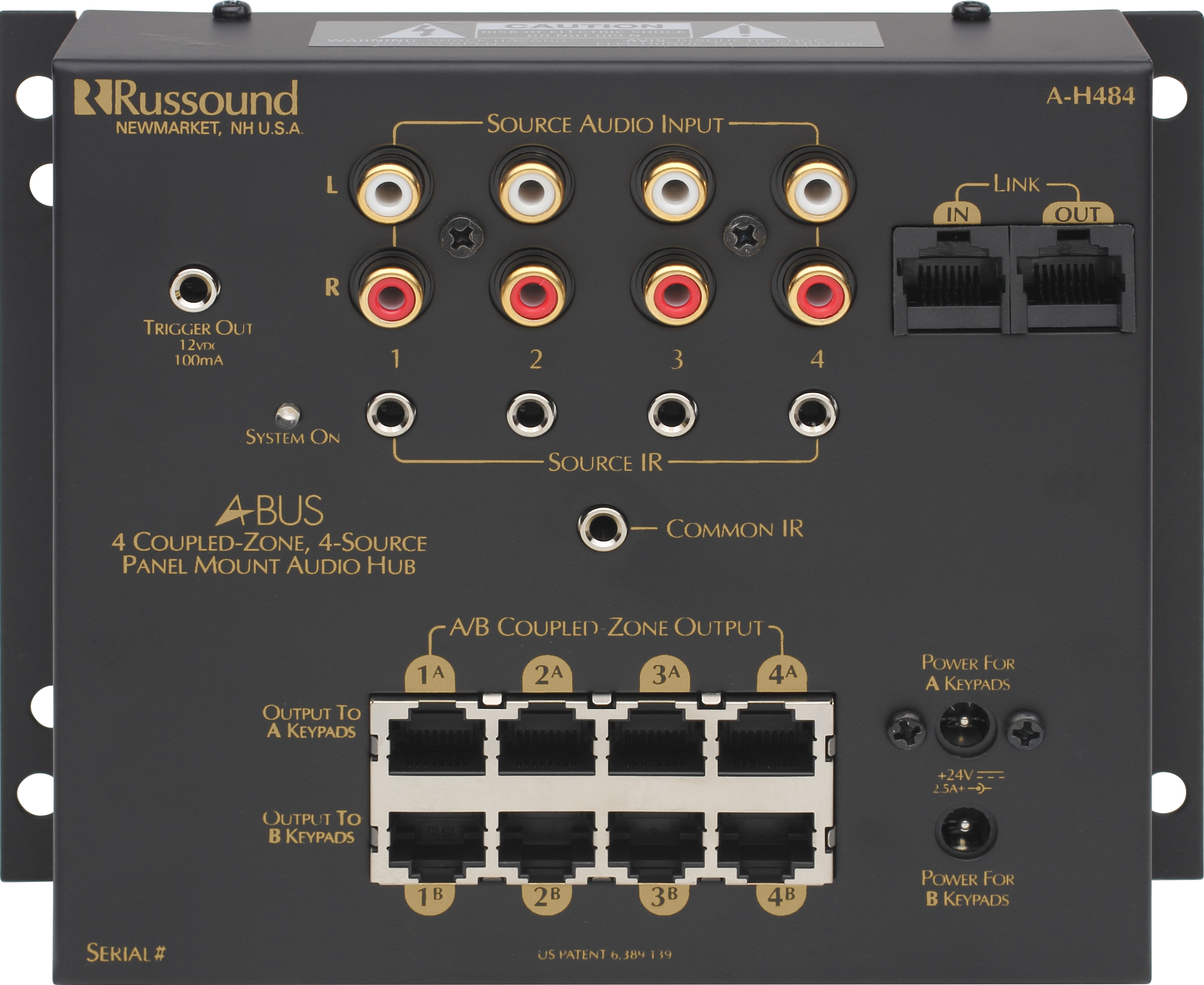

Russound® Surface Mount Hub

Model #: A-H484

At a Glance

The A-H484 multisource hub allows you to play up to four audio sources through your A-BUS system. You can select any source independently in each zone at the keypad or with an A-LRC1 remote control. Each zone may have one or two rooms with A-K4 Amplified Keypads.

WarningProposition 65 Warning for California Residents
Russound® Surface Mount Hub

General Specs

Analog Audio(RCA) Input4
ColorBlack

General

Shipping Dimensions8.7" (W) x 2.8" (H) x 7.0" (D) (22.0 x 7.0 x 17.8 cm)
Shipping Weight2.2 lbs (1.0 kg)
Emitter Connectors1/8" TS connector, tip (+), sleeve (-)
Keypad OutputsRJ-45 T568A standard
Link ConnectorsRJ-45 T568A standard
Power Requirement(S)A-PS power adapter 24 VDC 4 A (one required for each group of 4 keypads)
Trigger Output(S)12 VDC 100 mA 1/8" TS connector, tip (+), sleeve (-)

Russound® Surface Mount Hub

Model #: A-H484
186528
Model #: A-H484
Russound
$99,999.00

Call for Best Price

At a Glance

The A-H484 multisource hub allows you to play up to four audio sources through your A-BUS system. You can select any source independently in each zone at the keypad or with an A-LRC1 remote control. Each zone may have one or two rooms with A-K4 Amplified Keypads.

Get to know this product.

To control the sources, you can use either the A-LRC1 or the source manufacturer's remote. The A-H484 passes source commands from each zone to the source selected in that zone. It also provides a common IR output to pass source commands from all zones.

The A-H484 provides four zones. Multiple A-H484 hubs can be linked together to accommodate larger systems.

Serves up to eight rooms in four zones - two rooms per zone

Multiple hubs link together to create more zones

Easily mounts on shelf or wall near audio equipment

Provides both routed and common IR outputs as well as 12-volt trigger output

Useful Documents
Specifications

General Specs

Analog Audio(RCA) Input4
ColorBlack

General

Shipping Dimensions8.7" (W) x 2.8" (H) x 7.0" (D) (22.0 x 7.0 x 17.8 cm)
Shipping Weight2.2 lbs (1.0 kg)
Emitter Connectors1/8" TS connector, tip (+), sleeve (-)
Keypad OutputsRJ-45 T568A standard
Link ConnectorsRJ-45 T568A standard
Power Requirement(S)A-PS power adapter 24 VDC 4 A (one required for each group of 4 keypads)
Trigger Output(S)12 VDC 100 mA 1/8" TS connector, tip (+), sleeve (-)
