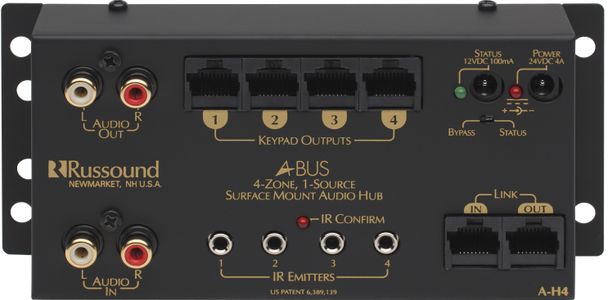

Russound® Surface Mount Hub

Model #: A-H4 1

At a Glance

The A-H4 hub is the heart of a single-source A-BUS music system. It sends the output of your audio source to A-BUS Amplified Keypads or Amplified Volume Controls in up to four rooms. If you want music in more rooms, multiple A-H4 hubs can link together to provide more A-BUS zones.

WarningProposition 65 Warning for California Residents
Russound® Surface Mount Hub

General Specs

Analog Audio(RCA) Input1
ColorBlack

General

Shipping Dimensions3.4" (W) x 6.8" (H) x 2.0" (D) (8.7 x 17.1 x 5.1 cm)
Shipping Weight0.9 lbs (0.4 kg)
Audio Input ConnectorsLine-level stereo RCA jacks
Control Link Input and OutputRJ-45 jacks, T568A standard
IR Emitter Connectors(4) 1/8" (3.5 mm) TS jacks, tip positive
Keypad Outputs(4) RJ-45 jacks, T568A standard
Power Connector2.5 mm jack, tip positive
Power Requirement(S)24 VDC 2.5 A (use Russound A-PS power supply)
Status Power (Optional)12 VDC 100 mA
Status Power Connector2.5 mm jack, tip positive

Russound® Surface Mount Hub

Model #: A-H4 1
186529
Russound

Call for Best Price

At a Glance

The A-H4 hub is the heart of a single-source A-BUS music system. It sends the output of your audio source to A-BUS Amplified Keypads or Amplified Volume Controls in up to four rooms. If you want music in more rooms, multiple A-H4 hubs can link together to provide more A-BUS zones.

Get to know this product.

With a receiver or preamplifier connected to the A-H4, you can select any of your music sources to enjoy throughout the house. Or you can connect just a single audio source, such as a computer or a CD changer.

For added convenience, an optional Status feature indicates on your keypads when the receiver is on and turns all your keypads off when it’s turned off.

The A-H4 is designed for surface mounting, such as on a shelf or in a rack with your source equipment.

Works with Russound A-K4 Amplified Keypads

Provides source status indication on your keypads

Mounts unobtrusively near your audio equipment, on a shelf or in a rack or cabinet

Includes a source loop output and IR emitter jacks for four source components

Links to other hubs for more zones

Useful Documents
Specifications

General Specs

Analog Audio(RCA) Input1
ColorBlack

General

Shipping Dimensions3.4" (W) x 6.8" (H) x 2.0" (D) (8.7 x 17.1 x 5.1 cm)
Shipping Weight0.9 lbs (0.4 kg)
Audio Input ConnectorsLine-level stereo RCA jacks
Control Link Input and OutputRJ-45 jacks, T568A standard
IR Emitter Connectors(4) 1/8" (3.5 mm) TS jacks, tip positive
Keypad Outputs(4) RJ-45 jacks, T568A standard
Power Connector2.5 mm jack, tip positive
Power Requirement(S)24 VDC 2.5 A (use Russound A-PS power supply)
Status Power (Optional)12 VDC 100 mA
Status Power Connector2.5 mm jack, tip positive
