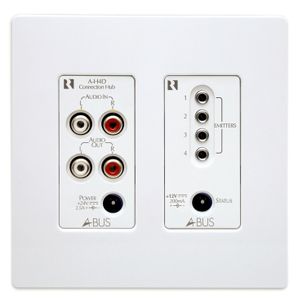

Russound® In-Wall Hub

Model #: A-H4D

At a Glance

As the heart of a single-source A-BUS system, the A-H4D hub sends music from your audio source to A-BUS Amplified Keypads or Amplified Volume Controls in up to four rooms. To provide music in more rooms, one or more A-H4Dx Expansion Hubs can be added to the A-H4D.

WarningProposition 65 Warning for California Residents
Russound® In-Wall Hub

General Specs

Analog Audio(RCA) Input1
ColorWhite

General

Shipping Dimensions4.5" (W) x 4.0" (H) x 2.0" (D) / (11.4 x 10.2 x 5.1 cm)
Shipping Weight0.5 lbs (0.2 kg)
Audio Input ConnectorsLine-level stereo RCA jacks
Expansion Input Connector8-pin female socket
IR Emitter Connectors(4) 1/8" (3.5 mm) TS jacks, tip positive
Keypad Outputs(4) 110 punch-down blocks
Power Connector2.5 mm jack, tip positive
Power Requirement(s)24 VDC 2.5 A (use Russound A-PS power supply)
Status Power (Optional)12 VDC 100 mA
Status Power Connector2.5 mm jack, tip positive

Russound® In-Wall Hub

Model #: A-H4D
186530
Model #: A-H4D
Russound
$99,999.00

Call for Best Price

At a Glance

As the heart of a single-source A-BUS system, the A-H4D hub sends music from your audio source to A-BUS Amplified Keypads or Amplified Volume Controls in up to four rooms. To provide music in more rooms, one or more A-H4Dx Expansion Hubs can be added to the A-H4D.

Get to know this product.

With a receiver or preamplifier connected to the A-H4, you can select any of your music sources to enjoy throughout the house. Or you can connect just a single audio source, such as a computer or a CD changer.

For added convenience, a Status feature indicates on your keypads when the receiver is on and turns all your keypads off when it's turned off.

Designed with an attractive Decora® style, the A-H4D installs in a double-gang wall box.

Works with Russound A-K4 Amplified Keypads

Provides source status indication on your keypads

Includes a source loop output and IR emitter jacks for four source components

Decora®-style device installs in the wall near your audio equipment

More zones can be added with A-H4Dx Expansion Hubs (each A-H4Dx occupies an additional gang)

Useful Documents
Specifications

General Specs

Analog Audio(RCA) Input1
ColorWhite

General

Shipping Dimensions4.5" (W) x 4.0" (H) x 2.0" (D) / (11.4 x 10.2 x 5.1 cm)
Shipping Weight0.5 lbs (0.2 kg)
Audio Input ConnectorsLine-level stereo RCA jacks
Expansion Input Connector8-pin female socket
IR Emitter Connectors(4) 1/8" (3.5 mm) TS jacks, tip positive
Keypad Outputs(4) 110 punch-down blocks
Power Connector2.5 mm jack, tip positive
Power Requirement(s)24 VDC 2.5 A (use Russound A-PS power supply)
Status Power (Optional)12 VDC 100 mA
Status Power Connector2.5 mm jack, tip positive
