Russound® Cream KNX to RIO Gateway

Model #: KNX-RIO-1

At a Glance

The Russound KNX-RIO-1 Gateway is a device that allows KNX panels and keypads to operate Russound controller amplifiers that support the RIO protocol. The KNX-RIO-1 gateway supports control for up to 16 zones.

WarningProposition 65 Warning for California Residents
Russound® Cream KNX to RIO Gateway

General Specs

ColorWhite
Color Finish NameCream

General

ColorCream
Shipping Dimensions4.8" (W) x 3.0" (H) x 3.0" (D), (12.1 x 7.6 x 7.6 cm)
Shipping Weight0.0 lbs (0.0 kg)
Casting ColorCream
Construction MaterialABS
DIN Modules2 - EN 60715
KNX Bus ConnectionStandard KNX Bus terminal (grey and red)
Max CurrentKNX Bus: Max. 85 mA Ext. PS: 10 mA
Operating Temperature Range-5C to 45C
Power ConsumptionMax. 80 mA using only KNX Bus terminal, Max. 10 mA connecting 12; 24 VDC to the auxiliary screw terminal
Power SupplyObtained from the KNX Bus or separate external 12-24 PS
Protection DegreeIP 20, EN 60529
StandardsIn accordance with low voltage directives, EMC and RoHS
Storage Temperature-25C to 55C
Transport Temperature-25C to 70C

Russound® Cream KNX to RIO Gateway

Model #: KNX-RIO-1
186251
Model #: KNX-RIO-1
Russound
$99,999.00

Call for Best Price

At a Glance

The Russound KNX-RIO-1 Gateway is a device that allows KNX panels and keypads to operate Russound controller amplifiers that support the RIO protocol. The KNX-RIO-1 gateway supports control for up to 16 zones.

Get to know this product.

The KNX-RIO-1 can be configured in the standard KNX ETS Software program to perform a number of control functions, including basic Zone control and basic Source control. The KNX-RIO-1 also supported metadata feedback for those sources that support metadata (i.e. Russound Streamers) and KNX keypads and panels that can display the metadata.

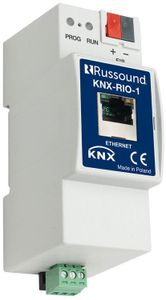

The Russound KNX-RIO-1 has standard KNX Bus connections and two LED lights both Red and Green to indicate connection status and programming download status. There is an Ethernet connection for the KNX-RIO-1 to be connected to the local LAN and standard Ethernet connection status lights for that connection. The KNX-RIO-1 is installed on 35mm DIN Rails and is powered by the power supply for the DIN Rail.

Allows KNX keypads and panels to operate Russound controllers via RIO protocol

Connection to the local LAN for IP control

Supports up to 16 zones and 8 sources

Supports up to 32 System Favorites

Supports Source Metadata - Source Name, Channel, Playlist, Artist and Song Title

Standard KNX bus connection

LED indicators for programming status and connection status

Standard connection to DIN rail for power and ease of installation

Specifications

General Specs

ColorWhite
Color Finish NameCream

General

ColorCream
Shipping Dimensions4.8" (W) x 3.0" (H) x 3.0" (D), (12.1 x 7.6 x 7.6 cm)
Shipping Weight0.0 lbs (0.0 kg)
Casting ColorCream
Construction MaterialABS
DIN Modules2 - EN 60715
KNX Bus ConnectionStandard KNX Bus terminal (grey and red)
Max CurrentKNX Bus: Max. 85 mA Ext. PS: 10 mA
Operating Temperature Range-5C to 45C
Power ConsumptionMax. 80 mA using only KNX Bus terminal, Max. 10 mA connecting 12; 24 VDC to the auxiliary screw terminal
Power SupplyObtained from the KNX Bus or separate external 12-24 PS
Protection DegreeIP 20, EN 60529
StandardsIn accordance with low voltage directives, EMC and RoHS
Storage Temperature-25C to 55C
Transport Temperature-25C to 70C
