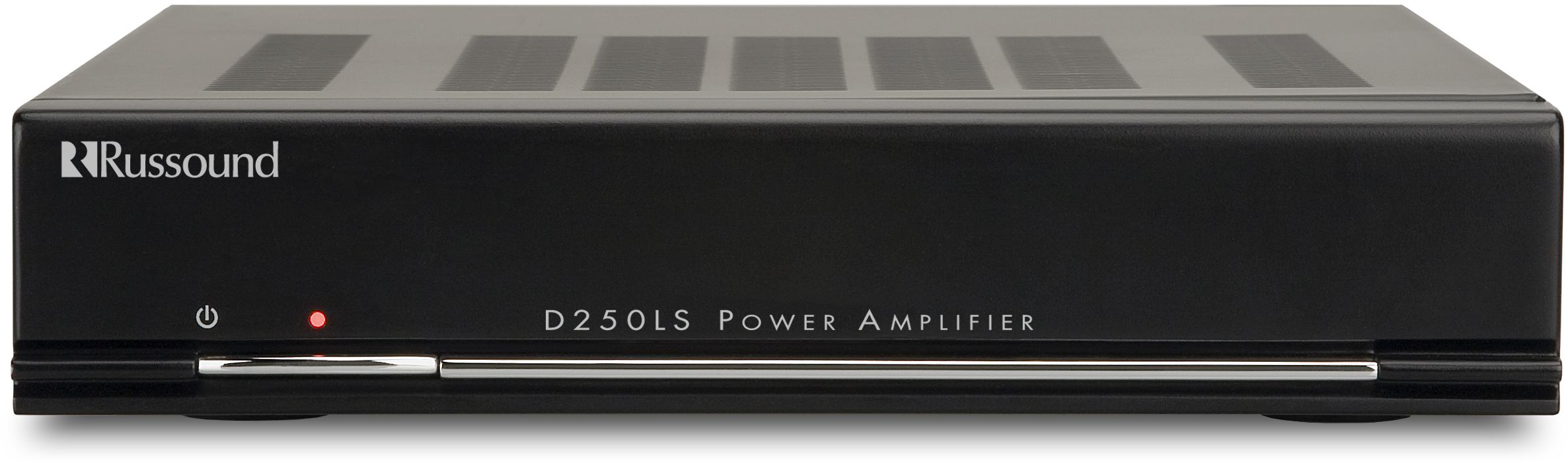

Russound® 2-Channel Digital Amplifier

Russound

Model #:

D250LS

Model #: D250LS
186640
Russound
$99,999.00

At a Glance

The D250LS is perfect for installations that include adding a local source to a multiroom system. The D250LS allows the source (e.g., a PC or TV in the bedroom) to automatically override the audio playing in that particular room of a distributed audio system. When the local source is turned on, the amplifier switches the room speakers to its own output. This amplifier also provides autosensing line and amplified inputs as well as a trigger input for versatility in different applications.Read More

Call for Best Price

Get to know this product.

Product Overview

Product Overview

The D250LS is rated at 50 watts per channel into 8 ohms and 75watts per channel into 4 ohms. In bridged mode the D250LS is rated at 150 watts of power into a single 8-ohm load. Each amplifier output channel incorporates robust protection circuitry for safety and reliability under extreme circumstances.

The D250LS Amplifier meets EU Standby Power Requirements.

Switches speakers between a local source and a distributed audio system

Four mounting options available with included hardware

Low-profile design permits use in areas most amplifiers won't fit

Channels are bridgeable to create one channel with substantial power output

Robust circuitry is designed for long-term stability

Useful Documents
Specification Sheet
Manual
Specifications

General Specs

Channels2
Analog Audio(RCA) Input1
ColorBlack

General

Shipping Dimensions12.8" (W) x 5.0" (H) x 11.5" (D) (32.4 x 12.7 x 29.2 cm)
Shipping Weight7.1 lbs (3.2 kg)
Amplifier Channels2
Channel Separation>60dB @ 1 kHz
Frequency Response20 Hz to 20 kHz +/- 0.4 dB
Fuse RatingT3.15AL/250V
Input Impedance47 kilohms Line Input
Input Sensitivity70 mV for 1 watt at 8 ohms; 550 mV for 50 watts at 8 ohms
Power Consumption (Standby)<0.5 watts
Power OutputContinuous Stereo: 50 watts per channel at 8 ohms (<0.3% THD+N) @ 1kHz, 75 watts per channel at 4 ohms, 150 watts at 8 ohms, 2 channels bridged
Power Requirement(s)North American: 120 VAC 60 Hz 2.5A; European: 230 VAC 50 Hz 2.5A; IEC 320 type connector with 3 terminal detachable power cord
Signal to Noise Ratio>112 dB A-weighted
Switching Delay5 seconds to 5 minutes
Total Harmonic Distortion<0.3% THD+N from 20 Hz to 20 kHz for 50W into 8 ohms; <0.05% from 20Hz to 20kHz for 1W into 8 ohms
Trigger Input(s)12 VDC 10 kilohms
Trigger Output(s)12 VDC 100 mA max
Voltage Gain32 dB
Zone Outputs1
