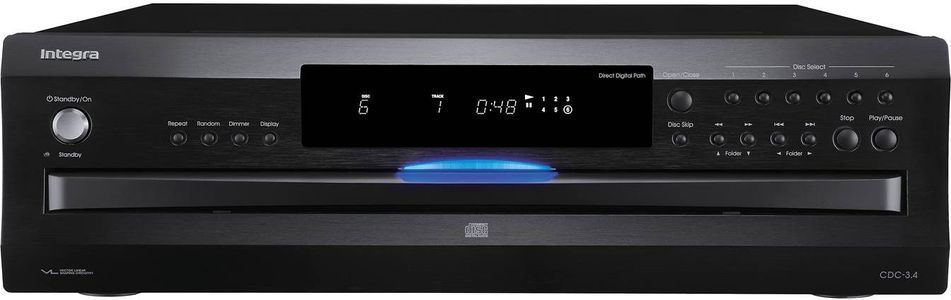

Integra® 6 Disc Carousel CD Player


Model #:

CDC-3.4

Model #: CDC-3.4
210453
Integra
$99,999.00

At a Glance

Product Dimensions 5.19"h x 17.13"w x 17.19"d

The best parts, technology and engineering come together to bring you an unparalleled music listening experience.Read More

Available in Store Only

Get to know this product.

Product Overview

Product Overview
Original and Exclusive 6-disc CD Carousel

Integra was the first company to offer an exclusive 6-disc carousel in a CD changer. The tradition continues with the newly redesigned CDC-3.4. It features smooth & quiet mechanical operation, plus a soft blue light which illuminates the disc tray for better visibility. You can also load up to 5 discs while one is still playing for extended listening times without interruption.

Vector Linear Shaping Circuitry

Conventional analog filters reduce digital noise at the D/A conversion stage, and then the VLSC uses a 'Vector Generator' to output a smooth and noiseless analog signal. This results in a dramatically improved sound quality for all types of music signals.

Original and exclusive 6-disc CD Carousel

CD-R/RW with MP3 playback support including ID3 tag information

High Quality 192kHz/24-Bit DACs by Wolfson®

VLSC-Vector Linear Shaping Circuitry

8x Oversampling

Connections

Bi-Directional RS-232 Port

Rear IR Input and Output

2 Digital Outputs (1 Optical, 1 Coaxial)

Miscellaneous

9 unique IR code sets for stacking multiple units

True random play (Including MP3)

Direct Disc and track access (Including MP3)

Next selection cueing function

Optional Rack Mount Kit Available (IRK-120-3A)

Useful Documents
Specifications

General Specs

Product Weight (lbs.)15.2
Width (in.)17.13
Depth (in.)17.19
Height (in.)5.19
Frequency Response5Hz - 20kHz
Disc Capacity6
Manufacturer Warranty3 Year
Analog Audio(RCA) Output1
ColorBlack

Audio Performance

Disc CompatibilityCD, CD-R, CD-RW
Signal Readout SystemOptical non-contact
Error Correction SystemCross-Interleave Reed-Solomon Code (CIRC)
Multi-Bit Digital to Analog ConverterWolfson 192 KHz / 24-Bit (x2)
Digital Filter128 Times Oversampling
Frequency Response5 Hz - 20 kHz
THD (Total Harmonic Distortion)0.005 % (at 1 kHz)
Audio Dynamic Range96 dB
S/N Ratio98 dB
Channel Separation92 dB (at 1 kHz)
Wow and FlutterBelow Threshold of Measurability

Audio Outputs

Audio Output (Digital / Optical)-22.5 dBm
Audio Output / Impedance (Digital / Coaxial)0.5 V (p-p) / 75 Ω
Audio Output / Impedance (Analog)2.0 V (rms) / 470 Ω

General

Power Supply RatingAC 120 V 60 Hz
Power Consumption10 W
Standby Power Consumption4 W
Dimensions (W x H x D)17 1/8" x 5 3/16" x 17 3/16" (435 x 131 x 436mm)
Weight15.2 lbs. (6.9 kg)
Optional Rack Mount KitIRK-120-3A
U Dimension (with Rack Kit)4U
Shipping Dimensions (W x H x D)21-1/4" x 9-3/4" x 21" (641 x 248 x 533mm)
Shipping Weight19 lbs. (8.6 kg)
WarningProposition 65 Warning for California Residents
