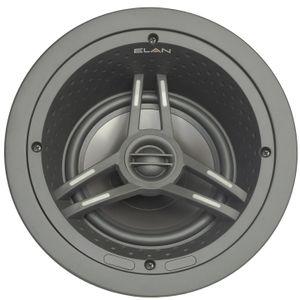

ELAN® 600 Series 6.5" LCR In-Ceiling Speaker (Each)-EL-600-ICLCR-6

Model #: EL-600-ICLCR-6
At a Glance

A multipurpose speaker with step-up performance, the EL-600-ICLCR-6 includes an upgraded injection molded polypropylene cone woofer and pivoting 1"" silk dome tweeter that's perfect for home theater as a left, center, or right speaker. It's so versatile that it can also be used as a surround speaker or for distributed audio.

Available in Store Only

Get to know this product.

Room Filling Sound

Low Crossover points and a woofer that's mounted as close to the surface as possible delivers the widest dispersion and best sound quality possible

Silky Smooth Highs

Silk dome tweeters reduce the severity of break-up modes resulting in silky smooth sound which is pleasing to the ear - even at high volumes

Tilt Tweeter

The tilting tweeter mechanism allows you to direct sound to the listening area and maintains high frequency performance even when the speaker is mounted in less than ideal locations

Thin is In

A thin-bezel magnetic grille ensures a secure fit, pleasing aesthetic and with a one-step paint process, it fits universally into almost any décor

Easy-Grip Tweeter Bridge

We know you do it! Installing speakers above your head requires a sturdy grip point and the ELAN Tweeter bridge ensures you have one. We even protect the tweeter from accidental finger pokes

Dimpled Baffle Design

The dimpled baffle design eliminates annoying echoes and increases dispersion by reducing the focusing action of the concave baffle. The result is crystal-clear room filling sound

Secure Connection

All ELAN speakers feature spring loaded binding posts that provide a secure, worry-free connection in the wall or ceiling

Lifetime Warranty

Feel confident that All ELAN Architectural speakers are backed by a limited lifetime warranty

  • Injection molded polypropylene cone woofer
  • Pivoting 1"" silk dome tweeter
  • Easy-Grip Tweeter Bridge
Useful Documents


Length10.7 (Inches)
Width10.5 (Inches)
Height5.9 (Inches)
Weight2.02 (Lbs)
Unit Of MeasureEach
Woofer Size6-1/2" / 160mm
Woofer ConstructionInjection Molded Polypropylene Cone
Tweeter1" / 25mm Pivoting Silk Dome
Frequency Response51Hz-20kHz
Impedance8 (Ohms)
Power Handling110 (Watts)
Sensitivity88 (dB)
TimbreTimbre-Matched to all 600 Series Speakers
Dimensions9-5/8" / 237mm Diameter x 4.5" / 114 mm Depth
Hole Cutout Dimensions8-1/4" / 210 mm Diameter
Mounting Depth4.4" / 111mm"
Warning:WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to

Misc. Specs

Frequency Response51Hz-20kHz
Manufacturer WarrantyLimited Lifetime
Collection600 Series
Impedance8 ohms
Maximum Power Handling (Watts)110
Number of Speakers2
Speaker TypeIn-Ceiling Speakers
Depth (in.)4.5
Height (in.)9.63
Width (in.)9.63
Woofer Size6.5"
WarningProposition 65 Warning for California Residents
