Product Dimensions 11.9"h x 19.2"w x 4.5"d

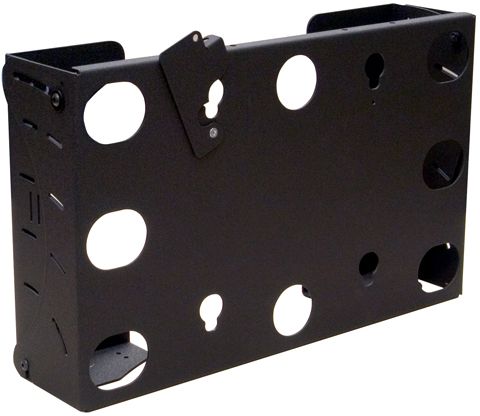

Provides an all-in-one tilt wall mount solution for both a medium-sized flat panel display and CPU or receiver.Read More
An ideal solution for digital signage applications
Complete solution designed to easily integrate a media player into a flat panel installation
Provides lockable tilt at 0, 5, 10 and 15º
Integrated lateral shift up .75" left or right of 16" center stud system
200 mm Q-Latch installation
Screen can be installed in portrait or landscape orientation (PAC400 or MAC400 accessory can be used to rotate without removing the screen)
TAA Compliant
General Specs | |
| Tilt | Yes |
| Depth (in.) | 4.5 |
| Width (in.) | 19.2 |
| Height (in.) | 11.9 |
| TV Size's up to (in.) | 55 |
| Weight Capacity (lbs.) | 100 |
| Mounting Location | Wall |
General | |
| Certifications | TAA Compliant |
| Color | Black |
| Lateral Shift | 1.5" (38.1mm) |
| Max Equip Size H x W x D | 14" x 18.82" x 3.82" (356 x 478 x 97 mm) |
| Maximum Screen Thickness | 6" |
| Minimum Depth | 4.5" (114.3mm) |
| Mounting Pattern Compatibility (Universal Versions) | 100 x 100mm ,200 x 100mm, 200 x 200mm, 400 x 200mm |
| Number Of Monitors | 1 |
| Shipping Weight | 19.75 lbs (8.96 kg) |
| Solution Type | Universal |
| Tilt | + 0° , - 15° |
| Typical Screen Sizes | 26 - 55" |
| Wall Stud Compatibility In | 16" (406 mm) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Orientation | Landscape, Portrait |
