Atlona® Black Stereo/Mono Audio Amplifier

• Energy efficient
• Use any microphone
• Line level inputs
• Independent adjustment of microphone and line level inputs
• Microphone line level mixing
• RS-232 control
• Audio output format switch
• Infrared control is simple with the AT-PA1-IR-G2.

Energy efficient

• Requiring less power, class D amplifiers use an efficient design that reduces size and cost. By removing the need for large heat sinks and power regulators, the PA100-G2 is easy to integrate with a small size that fits into most spaces.

Use any microphone

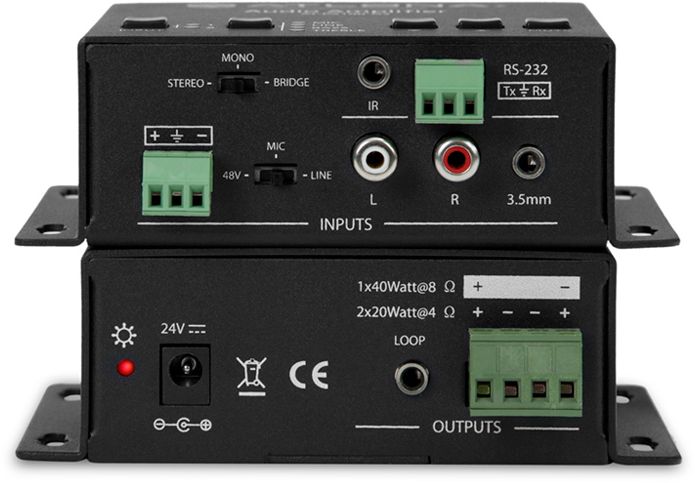

• Featuring a balanced 3-pin captive screw connector, it’s easy to attach any mic or line level source
• 3 position input switch offers settings for 48V provides phantom power for condenser mics, Mic for dynamic and battery-powered mics, and Line for line-level wireless mics

Line level inputs

• Unbalanced line level inputs are provided on stereo RCA and 3.5mm TRS mini connectors
• Top-mounted Input Selection Button toggle between the RCA input and 3.5mm audio input

Independent adjustment of microphone and line level inputs

• Top-mounted selector and adjustment controls allow gain to be matched between microphone and unbalanced line level inputs
• Ensures proper balance between sources

RS-232 control

• The AT-PA100-G2 has three control options: RS-232, IR, and Panel Buttons so it can be integrated into any control system
• Controllable functions include: Volume (microphone and line input) Bass, or Treble levels

Audio output format switch

• Use to switch between Stereo, Dual Channel Mono, and Bridged audio outputs

Loop output

• Loop out to another AT-PA100-G2 or audio amplifier with a 3.5mm stereo audio connector

Award-winning 10 year limited product warranty

• Ensures long-term product reliability and performance in residential and commercial systems
• Specify, purchase, and install with confidence
