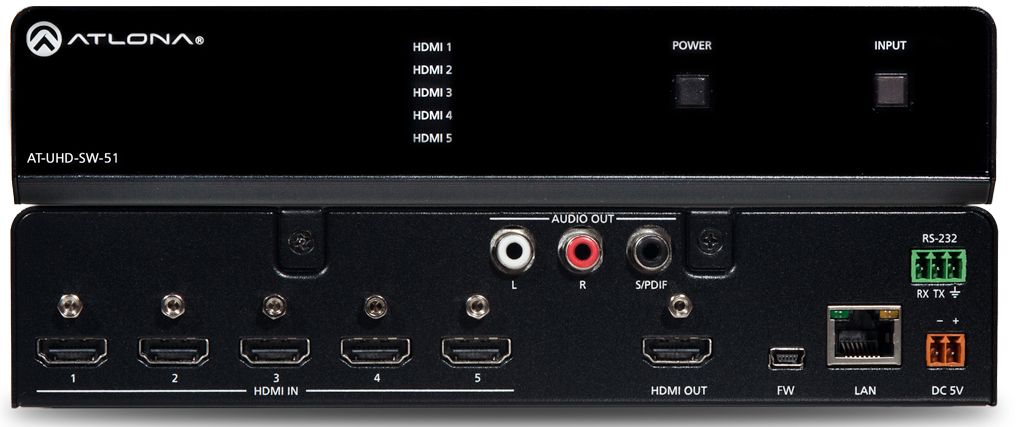

The Atlona AT-UHD-SW-51 is a 5×1 HDMI switcher with auto-switching and advanced control capability. The switcher supports 4K/UHD @ 60 Hz with 4:2:0 color, offers 3D pass-through, and 10.2 Gbps bandwidth. With front panel buttons and IR control, it can be a standalone switcher. Designed as a cost-effective, easy to install solution, the switcher offers a web-based GUI for easy set-up and management of EDID and HDCP. Additional control options include auto-switching, front panel selector, and compatibility with RS-232 or TCP/IP-based control systems. Audio features include de-embedding of PCM audio over HDMI to either S/PDIF or two-channel analog audio outputs; pass-through of Dolby TrueHD® and DTS-HD Master Audio™; plus an Audio Return Channel feed to the S/PDIF output from the HDMI display. The compact, 1U, half-rack width enclosure is easily installed in rack mounted systems with the 19” rack mount brackets. Two units can be mounted side-by-side.
The SW-51 automatically selects an input source based on detection of the 5 volt hot plug detect (HPD) signal, as well as active video. This ensures reliable auto-switching operation for all video sources, including DVRs, DisplayPort / Mini DisplayPort adapters, and other devices that always maintain the HPD line at the 5 volt “high” state but may not be delivering active video.
The SW-51 adds 4K/UHD performance to Atlona’s HDMI small switcher family to meet the needs of displays and sources with resolutions beyond 1080p. In addition, the switcher offers advanced audio features. Auto-switching, the additional TCP/IP control flexibility, and overall control system neutrality enable significant time savings during installation.
This switcher is ideal for custom residential systems and various commercial AV applications requiring performance and dependability in an HDMI switcher, as well as the convenience of automatic input switching and streamlined control system integration.
The Atlona Management System (AMS) is a powerful network software platform ideal for configuring, managing, and monitoring the SW-51 and other Atlona IP-controllable devices over a LAN, WAN, or VPN. AMS is available free from Atlona, and greatly streamlines installation and maintenance of several Atlona products throughout a facility or enterprise, from a standard web browser.
|Analog Audio||L/R RCA|
|LAN||RJ45 (8P8C), TCP/IP control|
|RS-232||3-pin captive screw|
|Power||2-pin, 5V captive screw|
|Supply||Input: AC100~240V 50/60Hz; Output: DC 5V/3.6A|
|H x W x D||1.73 x 8.64 x 10 (inch)|
|Rack Unit||1/2 rack, 1RU|
|Product Weight (lbs.)||1.40|
|Manufacturer Warranty||10 Year|
