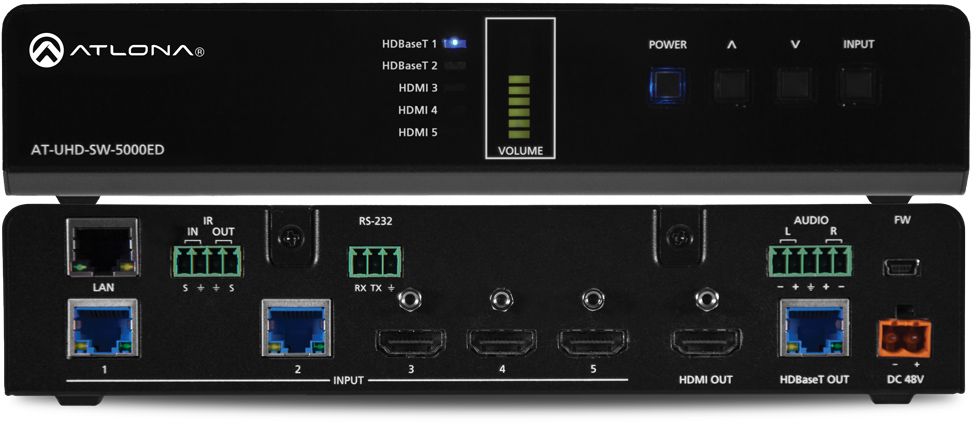

Atlona® 4K/UHD Five-Input HDMI Switcher

Model #: AT-UHD-SW-5000ED

At a Glance

The AT-UHD-SW-5000ED is part of the Atlona SW Series of compact AV switchers, ideal for a wide range of commercial and residential applications. The SW Series offers performance, reliability, and a host of integration and user convenience features. See below for more information.

WarningProposition 65 Warning for California Residents
Atlona® 4K/UHD Five-Input HDMI Switcher

General Specs

Product Weight (lbs.)3.70
Depth (in.)10.28
Width (in.)8.75
Height (in.)1.73
Manufacturer Warranty10 Year


Idle Consumption22W
SupplyInput: AC100-240V ~ 50/60Hz; Output: 48V/3.125A
H x W x D1.73 x 8.64 x 10 (inch)
Weight3.70 lbs

Atlona® 4K/UHD Five-Input HDMI Switcher

Model #: AT-UHD-SW-5000ED
Model #: AT-UHD-SW-5000ED

Available in Store Only

At a Glance

The AT-UHD-SW-5000ED is part of the Atlona SW Series of compact AV switchers, ideal for a wide range of commercial and residential applications. The SW Series offers performance, reliability, and a host of integration and user convenience features. See below for more information.

Get to know this product.

Product Compatibility

The AT-UHD-SW-5000ED features HDBaseT input and output, and is compatible with Atlona UHD-EX and HDVS-200 Series transmitters and receivers. This switcher can conveniently be controlled by the ANC-108D button control panel.

The Atlona AT-UHD-SW-5000ED is a 5×1 switcher with two HDBaseT inputs, three HDMI inputs, mirrored HDMI and HDBaseT outputs, balanced audio outputs, automatic input selection, and automatic display control capability. The HDBaseT inputs match perfectly with the HDVS-200-TX modules to enable VGA and HDMI sources to be easily integrated into a system. The switcher supports 4K/UHD @ 60 Hz, 4:2:0; (10.2 Gbps). It transmits AV signals along with Ethernet, power, and control over a single cable to displays up to 330 feet (100 meters) from the switcher. Control options include automatic input selection, front-panel buttons, and compatibility with IR, RS-232, or TCP/IP-based control systems. Displays are automatically turned on and off using CEC, IP, or RS-232.

The SW-5000ED enables two HDVS transmitters to be used in a single system. With Ethernet enabled HDBaseT transmission to the HDVS transmitters and the receiver control, setup and maintenance is simplified. Automatic input selection and display control simplify the system, reducing cost, reducing setup time and resulting in a better end user experience.

Automatic Display Control

The SW-5000ED provides control to a display through TCP/IP, RS-232, or CEC*, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the SW-5000ED can trigger a display to power on automatically whenever a laptop or other device is connected, whether locally to the switcher or over HDBaseT. At the end of the presentation, when the presenter disconnects the laptop, the SW-5000ED forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The SW-5000ED’s display control capability can also be triggered by an external control system.

A power button on the front panel can be used for manual on/off control of either the SW-5000ED or the display. Front panel volume controls are also available to control the display’s internal audio, or another device with volume control, such as a DSP or another switcher.

* Consumer Electronics Control (CEC): Atlona does not guarantee the function of CEC with all televisions. We can confirm proper operation with many current Samsung, Panasonic, and Sony TVs. Many manufacturers do not support the CEC “off” command when sent from a source and older TVs use proprietary commands. Atlona only supports those TVs that follow CEC command structure from HDMI 1.2a and support the “off” command when issued by a source. We encourage any dealer to get evaluation product from Atlona prior to designing a system around this control technology or be prepared to use other methods to control their displays if Atlona CEC is not compatible with the installed displays.

Reliable Auto-Switching

The SW-5000ED automatically selects an input source based on detection of the 5 volt hot plug detect (HPD) signal, as well as active video. This ensures reliable auto-switching operation for all video sources, including DVRs, DisplayPort / Mini DisplayPort adapters, and other devices that always maintain the HPD line at the 5 volt “high” state but may not be delivering active video.

Mirrored HDMI and HDBaseT Outputs

The SW-5000ED adds 4K/UHD performance and extended distance HDBaseT transmission to Atlona’s HDMI small switcher family for a unique solution for professional integration applications. Internal HDBaseT and video distribution eliminate the need for additional system components while PoE eliminates the need for a power supply for the receiver. As an alternative, with an HDBaseT-capable display, an HDBaseT receiver isn’t required, reducing system complexity and saving integrators time and money.

Additional Features

Advanced features also include a web-based GUI for easy set-up and management of EDID, HDCP, and display control. The switcher offers audio de-embedding of PCM audio over HDMI to two-channel, balanced +4 dBu analog audio outputs. The switcher is a cost-effective product for professional integration featuring a compact, 1U, half-rack width enclosure that is easily installed with included 19” rack-mount brackets. Two units can be mounted side-by-side.


Lecture halls and various meeting spaces – Presentations may be given from two separate locations, both remote from the lectern, equipment rack, or credenza.

Conference rooms and meeting rooms – The SW-5000ED is compact and ideal for under-table mounting. It conveniently provides automatic switching and display control for simplified user operation, especially when laptops are brought into the system.

Presentation spaces where two displays are needed – This switcher can be installed in a lectern to serve a confidence monitor, plus the primary display in a remote location.

Configured and Managed by AMS

The Atlona Management System (AMS) is a powerful network software platform ideal for configuring, managing, and monitoring the SW-5000ED and other Atlona IP-controllable devices over a LAN, WAN, or VPN. AMS is available free from Atlona, and greatly streamlines installation and maintenance of several Atlona products throughout a facility or enterprise, from a standard web browser.

Two, Ethernet-enabled HDBaseT Inputs

Supports two HDVS-200 Series transmitters for placement at remote sources near lecterns, conference tables, and instructor’s desks

Simplifies integration of remote sources by eliminating power supplies when used with PoE-powered transmitters*; single category cable carries AV signals, control and power

The SW-5000ED does not provide remote powering for the AT-OME-ST31.

Mirrored, dual outputs on HDMI and HDBaseT

Supports dual display environments with local and extended distance 330 foot (100 meter) displays

Eliminates cost associated with extra extension components; simplifies installation. HDMI output can be used with additional HDBaseT transmitter

Compatible receiver: AT-UHD-EX-100CE-RX (100 meter with control)

Automatic display control

Automatically changes projector power state based on active or standby mode of switcher. Control signals transmitted via CEC, IP, or RS-232

Eliminates need for complex control system in AV systems. Enables display and volume control directly. CEC enables control of low-cost consumer displays

Any product that has mirrored output with HDMI and HDBaseT will have CEC functionality through the HDBaseT output

Automatic input selection using hot plug detect and video detection technology

Selects active input when sources are connected or if there is a change in source power status

Eliminates need for complex control system in AV systems

Ethernet-enabled HDBaseT

Simplifies installation, maintenance with IP controlled switcher, transmitters and receivers using Atlona AMS

Configure, backup, update, maintain and monitor from a simple PC interface

IR, RS-232 and Ethernet HDBaseT insertion

Adds internally-generated or externally-generated display control signals to the HDBaseT transmission

Simplifies display control from third-party control systems

EDID management and HDCP management

Manages EDID communications between source and display; allows integrators to force sources to preferred resolution

Ensures desired audio formats and video resolutions are provided to the AV system; enables PC output to non-compliant codecs

4K/UHD capability

Compatible with Ultra High Definition sources and displays

Supports high-resolution applications such as CAD, desktop publishing, and detailed financial reporting

Supports up to HDCP 1.4 (Does not support HDCP 2.2 devices)

AV, Ethernet, power and control over HDBaseT

Delivers 4K/UHD video, audio, 100Base-T Ethernet, power and control through a single cable

Eliminates multiple cable runs between source, control system router and display

Power over Ethernet for remote-powered HDBaseT transmitters* and receivers

Industry standard IEEE 802.3af PoE supplied by the switcher over HDBaseT

No local AC outlet required; saves time and integration costs

The SW-5000ED does not provide remote powering for the AT-OME-ST31.

TCP/IP, RS-232, and IR control

Flexible control options compatible with 3rd-party control systems

Reduces integration time and costs

Easy, GUI-based configuration using integrated web server

Offers menu-based configuration of network settings, RS-232 settings, input switching, EDID, and HDCP management and audio

Allows fast configuration of internal product settings and troubleshooting from a tablet, smart phone, or PC in the field

Volume controls

Volume up and volume down button adjust output level to sound system

Alternatively send RS-232 or TCP/IP commands to external control device

Volume setting indicator

Displays volume level of the switcher

Provides quick indication of level during setup

Balanced, line level output

Reduces noise and requirement for external components

Matches requirements of commercial sound systems

Multi-channel audio compliant

Supports PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS Digital Surround™, and DTS-HD Master Audio™

Allows any multi-channel audio stream to be used within a professional audio system

Note: Only PCM sources are de-embedded and routed by the SW-5000ED

Rack-mountable, 1U, half rack width enclosure

Installs easily in rack-mounted systems with included 19” rack-mount brackets

Simplifies installations; included hardware allows two units to be mounted side-by-side

Works with AMS

This IP-controllable product can be remotely managed by the Atlona Management System software

Integrates product configuration, management, and updates to reduce installation time and enable remote support

Included accessories

User guide, IR remote control, rack and surface mounting hardware, and external universal power supply

Award-winning 10 year limited product warranty

Ensures long-term product reliability and performance in residential and commercial systems

Specify, purchase, and install with confidence


General Specs

Product Weight (lbs.)3.70
Depth (in.)10.28
Width (in.)8.75
Height (in.)1.73
Manufacturer Warranty10 Year


Idle Consumption22W
SupplyInput: AC100-240V ~ 50/60Hz; Output: 48V/3.125A
H x W x D1.73 x 8.64 x 10 (inch)
Weight3.70 lbs
